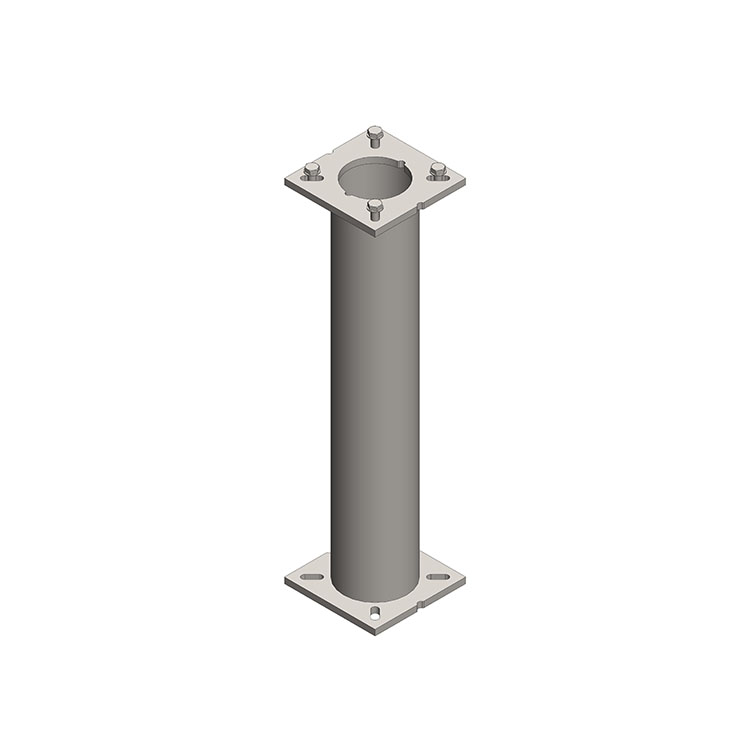

10″ dia. Pier Extensions (Quad Mount)

Product Classification

Part Number 1007-T010-0000

Product Type 10” Pier Extension/ Foundation

General Specifications

Application Elevated Platforms, Landings

Diameter 10.75 in [273 mm]

Dimensions

Width 15.5 in [393.7 mm]

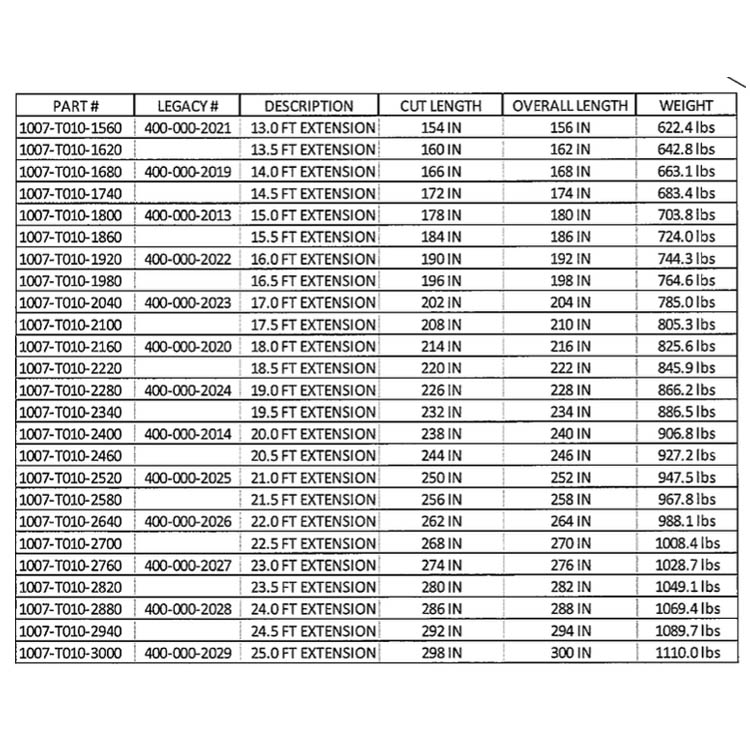

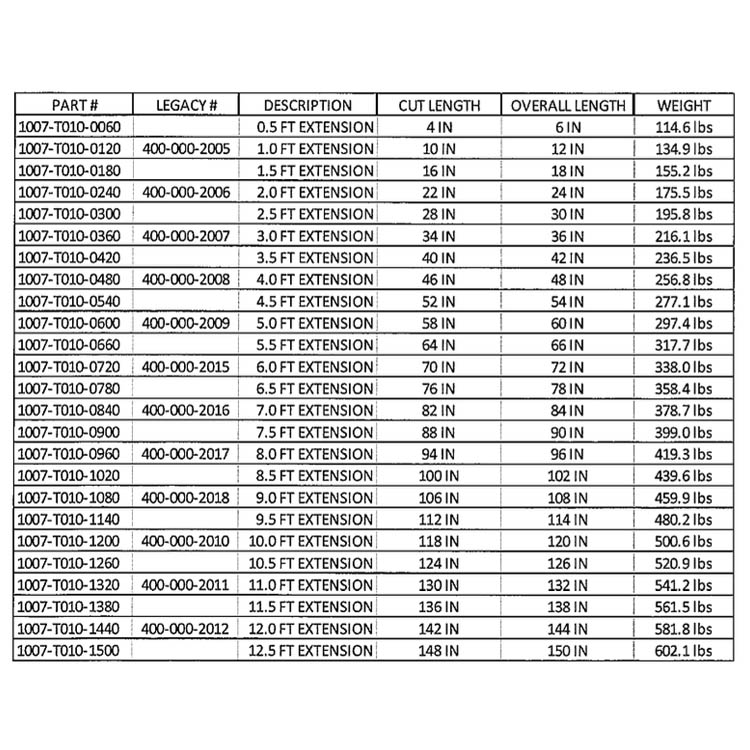

Length 6 in – 300 in [152.4 mm – 7,620 mm]

Diameter 10.75 in [273 mm]

Weight, Total Varies by length

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
