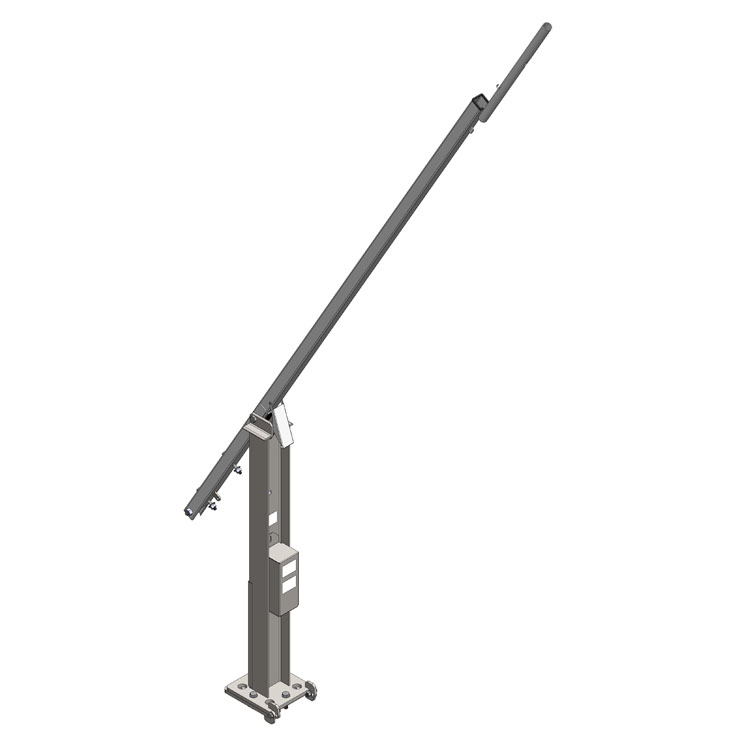

20 ft Antenna Tilt-Up Tower

Product Classification

Part Number 400-004-1000

Product Type 20 ft Antenna Tilt-Up Tower

General Specifications

Application Antenna, GPS or accessory tower for Railroad and Telecom. Base configured for helical pier, direct burial, or pre-cast foundations.

Dimensions

Height 282 in [7,162.8 mm]

Mount Pipe Diameter 2.38 in [60.3 mm]

Mount Pipe Length 42 in [1,067 mm]

Weight, Total 519 lb [235.4 kg]

Material Specifications

Material Type                                       Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 20’ – 80’

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-22
