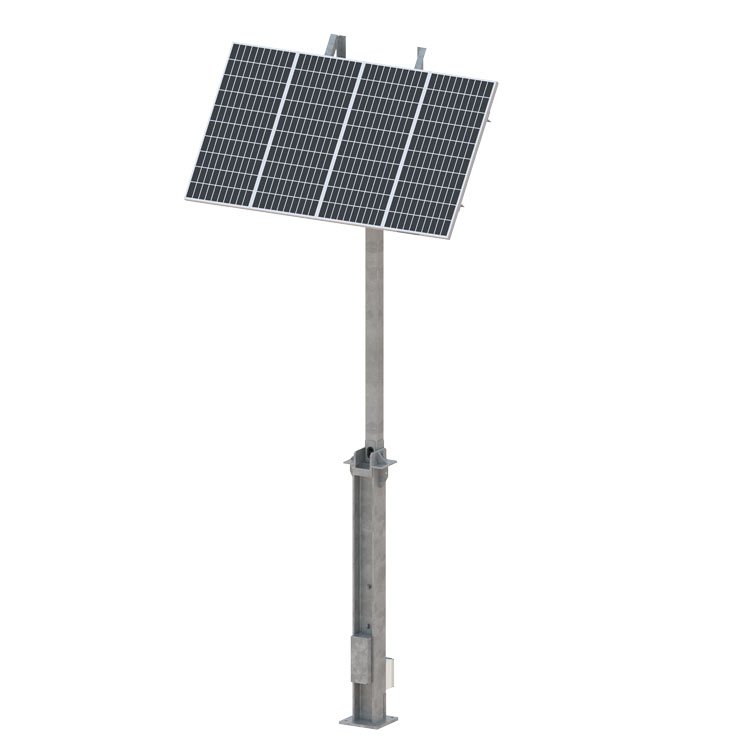

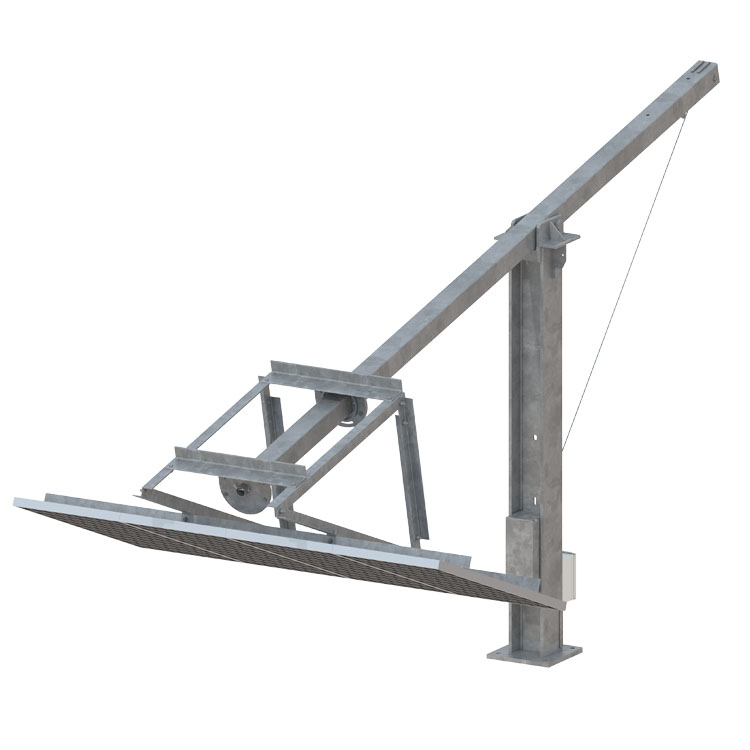

20 ft Tilt-Up Solar Tower, 4 Module

Product Classification

Part Number 400-004-1840

Product Type 20 ft Tilt-Up Solar Tower, 4 Module

General Specifications

Application Auxiliary or remote power for Oil & Gas, Railroad and Telecom. Base configured for helical pier, direct burial, or pre-cast foundations.

Dimensions

Height 244 in [6,197.6 mm]

Solar Mount Width 106 in [2,692.4 mm]

Adjustment Range 35° – 55° from horizontal

Weight, Total 1146.9 lb [520 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 5 – 10 Module

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
