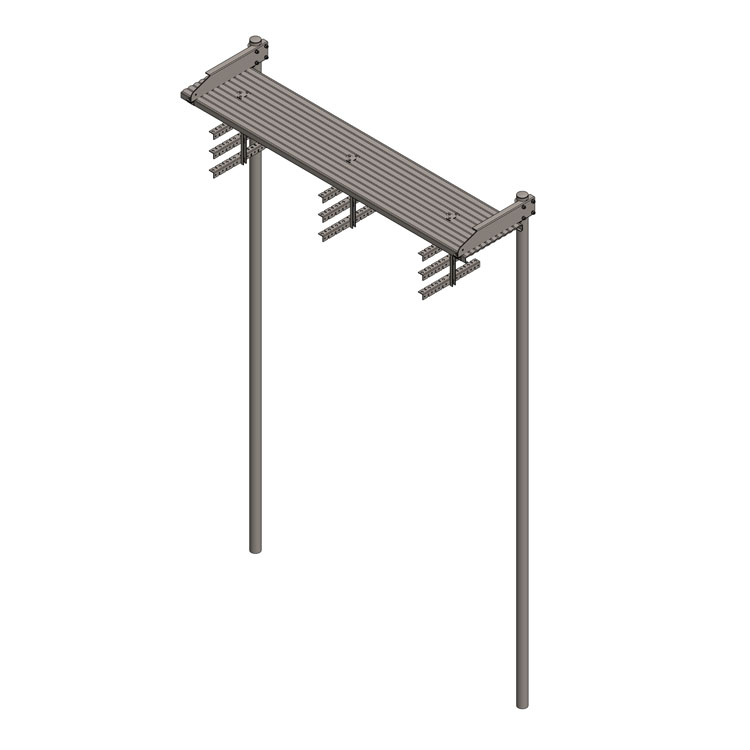

24″ Wide Ice Bridge Kit Trapeze, Direct Burial 183” Posts

Product Classification

Part Number 1000-0010-0359

Product Type 24″ Wide Ice Bridge Kit Trapeze, Direct Burial 183” Posts

General Specifications

Application Direct Burial

Cable Runs, qty 24

Pipe, qty 2

Dimensions

Height 1883.5625 in [4662.4875 mm]

Width 24 in [609.6 mm]

Length 120 in [3048 mm]

Pipe Diameter 3.5in [88.9 mm]

Pipe Length 184.8 in [4693.92 mm]

Weight, Total 334.97 lb [151.94 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
