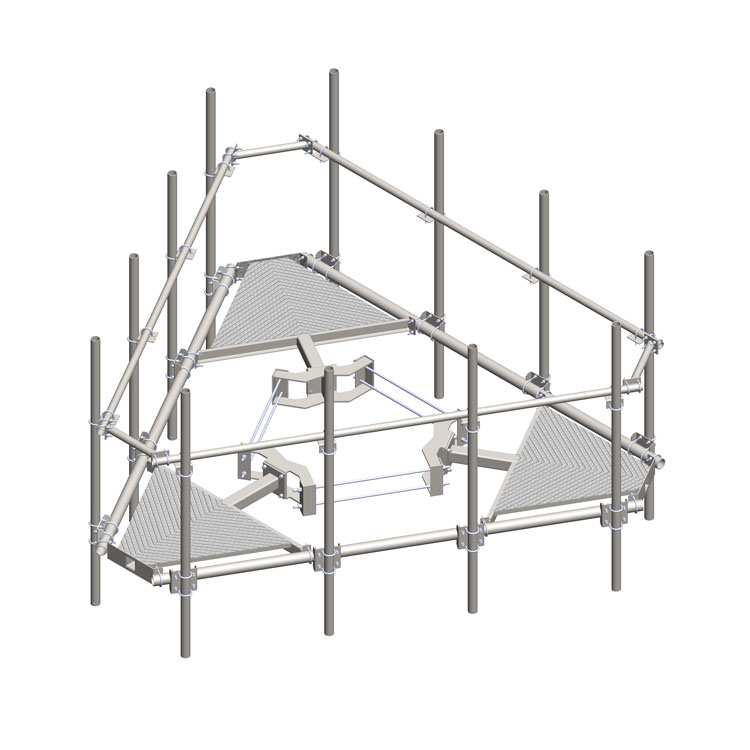

3 Sector, 4 Unit Monopole Platform Kit

Product Classification

Part Number 1000-0010-0344

Product Type 3 Sector, 4 Unit Monopole Platform Kit

General Specifications

Mounting Monopole, 12–40 in [305–1016 mm] OD

Pipe, Quantity 12

Sectors, Quantity 4

Dimensions

Height 96 in [2438 mm]

Vertical Pipe Diameter 2.9 in [73 mm]

Pipe Length 96 in [2438 mm]

Face Width 150 in [3810 mm]

Horizontal Pipe Dia. 3.5 in [89 mm]

Mounting Dia., max. 50 in [1270 mm]

Mounting Dia., min. 12 in [305 mm]

Stand-off Distance 60.56 in [1538.29 mm]

Mounting Circ., max. 157.08 in [3989.83 mm]

Mounting Circ., min. 37.7 in [958 mm]

Weight, Total 1875.56 lb [850.74 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Environmental Specifications

Man Rating 500 lb vertical man load at 15 mph (BWS)
