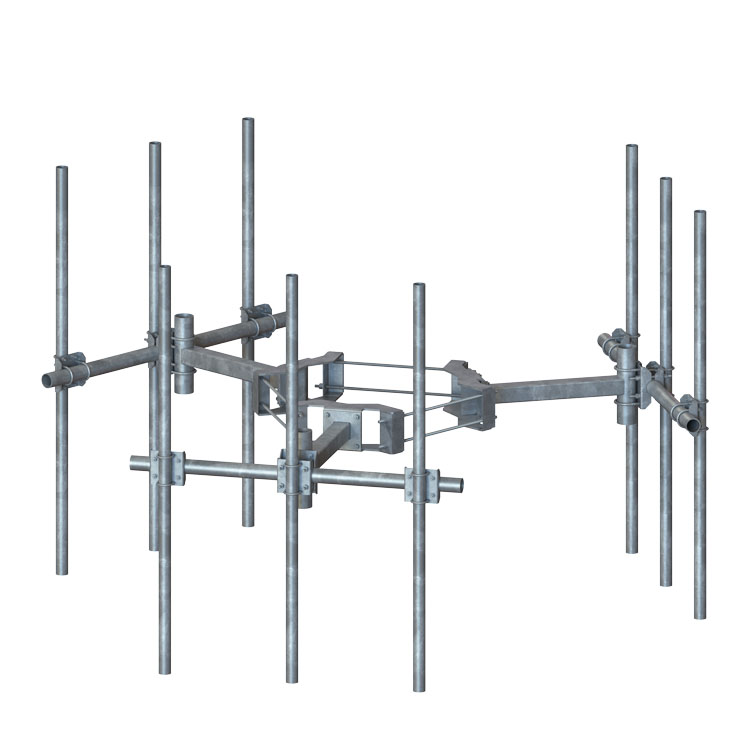

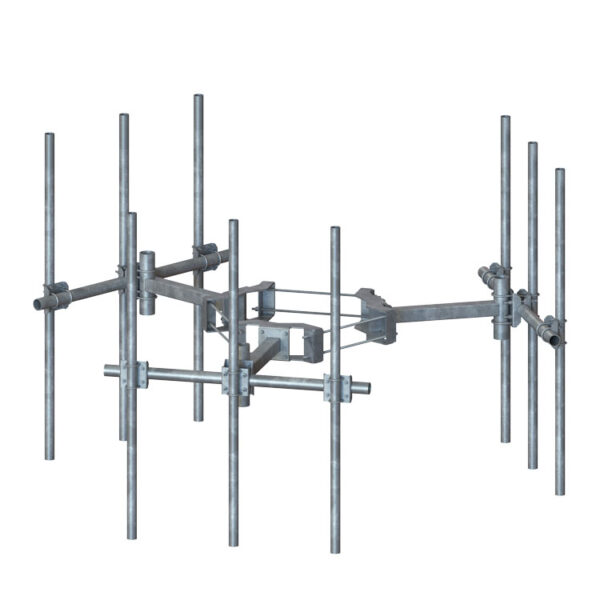

3 Sector, 3 Unit Monopole T-Arm Mount Assembly

Product Classification

Part Number 1000-0010-0294

Product Type Monopole T-Arm Mount

General Specifications

Mounting Monopole, 12–40 in [305–1016 mm] OD

Pipe, Quantity 9

Sectors, Quantity 3


Height 96 in [2438 mm]

Vertical Pipe Dia. 2.9 in [73 mm]

Pipe Length 96 in [2438 mm]

Face Width 78 in [1981 mm]

Horizontal Pipe Dia. 3.5 in [89 mm]

Mounting Dia. max. 40 in [1016 mm]

Mounting Dia., min. 12 in [305 mm]

Stand-off Distance 35 in [889 mm]

Mounting Circ. max. 125.7 in [3193 mm]

Mounting Circ. min. 37.7 in [958 mm]

Weight, Total 1158 lb [525 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
