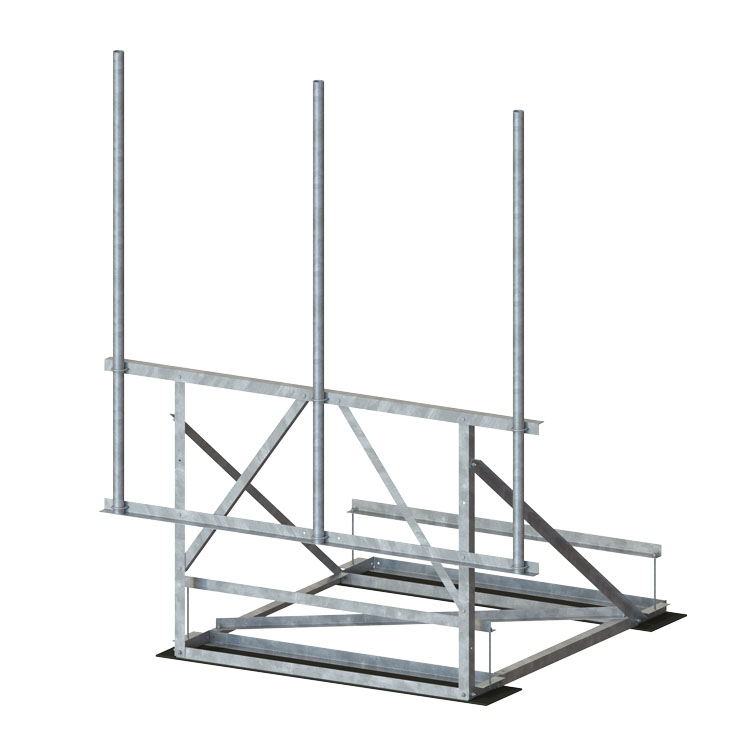

3 Unit Rooftop Sled Mount

Product Classification

Part Number 1000-0010-0297

Product Type Rooftop Sled Mount

General Specifications

Mounting Non-penetrating

Pipe, Quantity 3

Dimensions

Height 120 in [3048 mm]

Vertical Pipe Dia. 2.9 in [73 mm]

Pipe Length 120 in [3048 mm]

Face Width 126 in [3400 mm]

Length 100 in [2540 mm]

Weight, Total 680 lb [308 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Note

Not Included Rubber mats (provided separately)

Download Drawing
