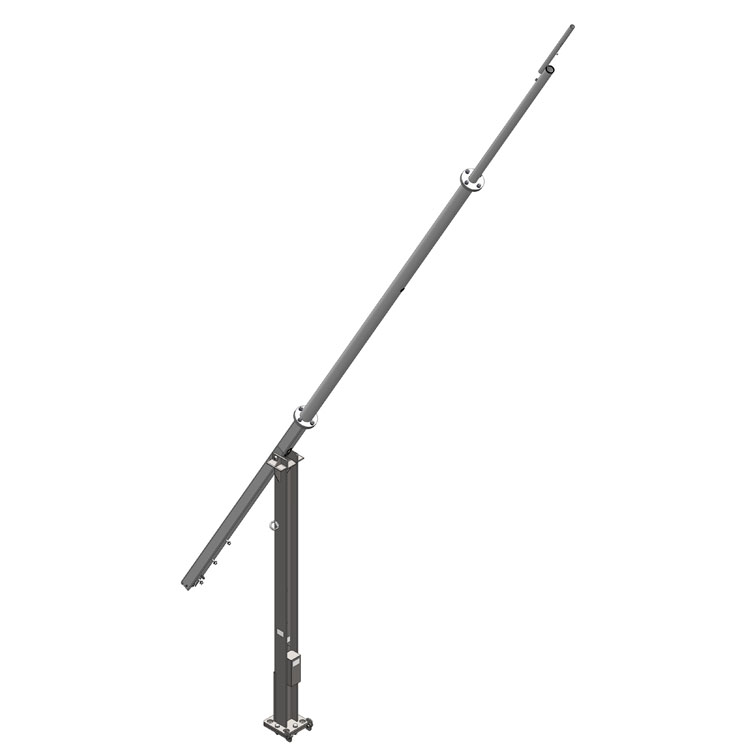

50 ft Antenna Tilt-Up Tower (110 MPH EIA/TIA REV G)

Product Classification

Part Number 400-004-4010

Product Type 50 ft Antenna Tilt-Up Tower

General Specifications

Application Antenna, GPS or accessory tower for Railroad and Telecom. Base configured for helical pier, direct burial, or pre-cast foundations.

Dimensions

Height 596 in [15,138.4 mm]

Mount Pipe Diameter 2.38 in [60.3 mm]

Mount Pipe Length 42 in [1,067 mm]

Weight, Total 1991.73 lb [903.4 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 20’ – 80’

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
