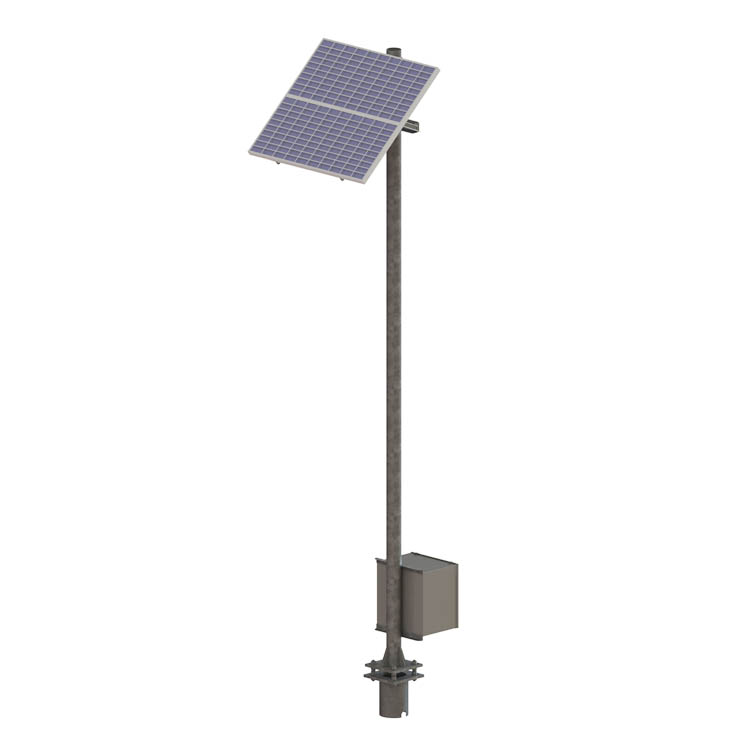

Fixed Solar Monopole, 20’ – 2 Module

Product Classification

Part Number 400-005-0520

Product Type Solar Monopole, 20’ – 2 Module

General Specifications

Application Remote location solar power. Base configured for helical pier, direct burial,

or pre-cast foundations.


Width 59.5 in [1,511 mm]

Pole Dia. 5.56 in [141.2 mm]

Height 240 in [6,096 mm]

Weight 460 lb [208.7 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 20’ – 80’

Solar Modules provided separately 1 – 5 module configurations available

J-Box provided separately

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
