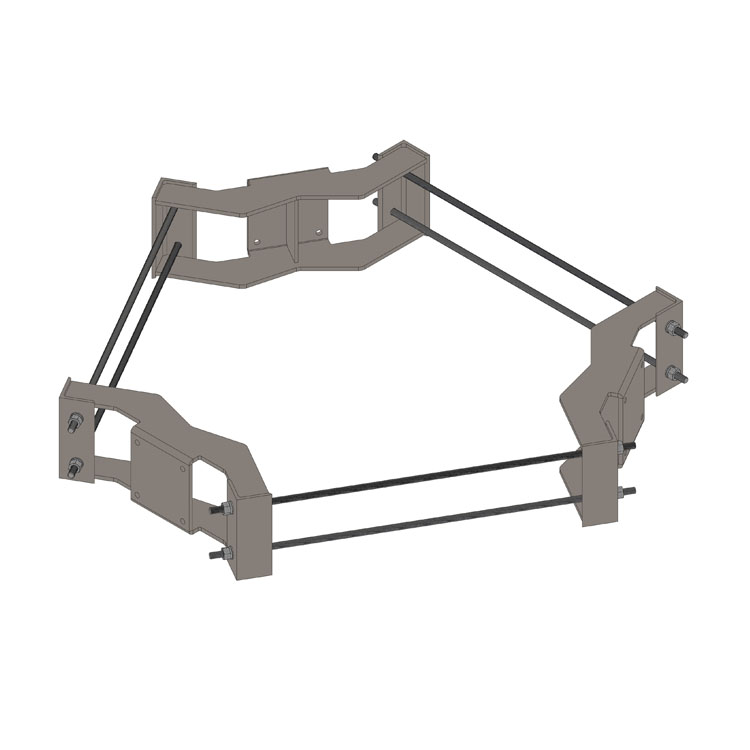

Large Universal Ring Mount 12”-50” Dia. Pole

Product Classification

Part Number 1012-0000-0168

Product Type Large Universal Ring Mount 12”-50” Dia. Pole

General Specifications

Application This kit is for attaching a platform or antennas to monopoles.

• Can fit poles 12” to 50”
• For platform option (1012-0020-0001)

Dimensions

Height 10.75 in [273.1 mm]

Width 70.3 in [1785.6 mm]

Depth 70.3 in [1785.6 mm]

Weight, Total 241.3 lb [109.5 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Other Specifications For details please contact sales@emiproducts.com or call 800-453-0050.

Download Drawing
