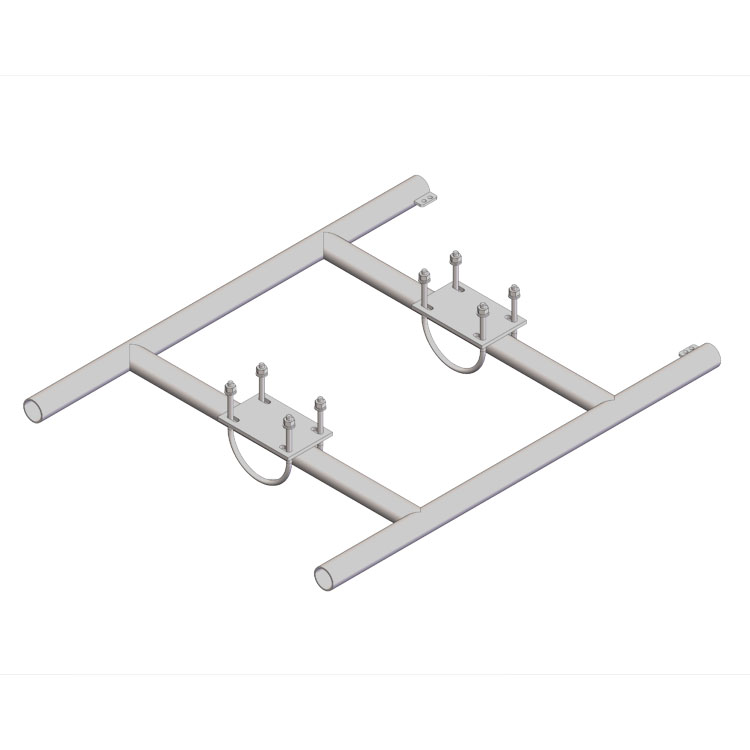

Mid-Mast Antenna H-Frame

Product Classification

Part Number 1015-0000-0017

Product Type Mid-Mast Antenna H-Frame

General Specifications

Application Antenna mount

Mounting 6.625 in [168.28 mm] OD

Pipe, Quantity 2

Tower Taper Non-tapered | Tapered


Height 48 in [1219.2 mm]

Vertical Pipe Diameter 2 in [50.8 mm]

Pipe Length 48 in [1219.2 mm]

Face Width 38.375 in [974.73 mm]

Stand-off Distance 1.5 in [38.1 mm]

Weight, Total 65.78 lb [29.84 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.
