Part Number 1012-0000-0136

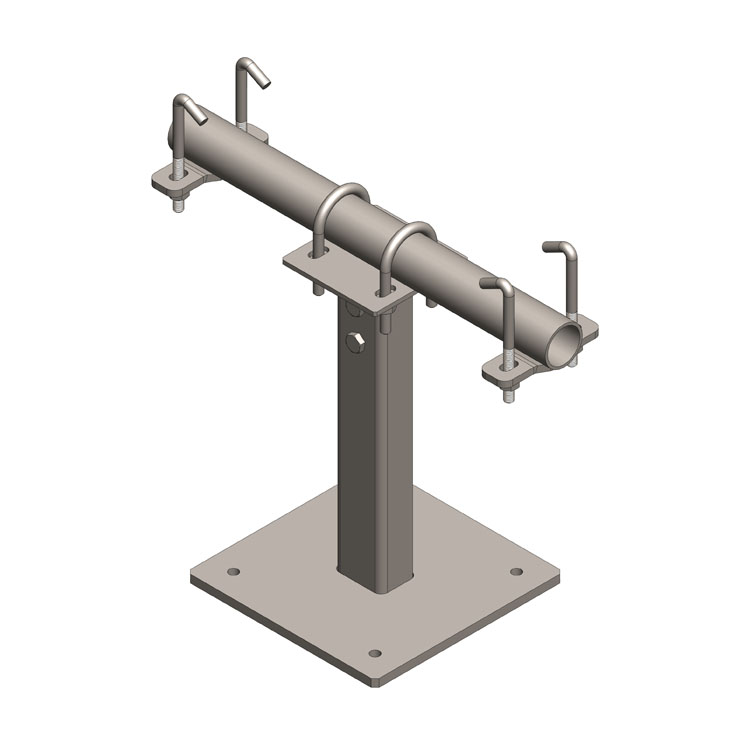

Product Type Rooftop T-Stand for 6 Run Cable Ladder
Application Stand to be installed on concrete pad and can mount a 6 run cable tray to avoid equipment wiring from being on the ground. Height is adjustable up to a 29 3/4” height.
Height Min 17.75 in [450.9 mm]
Heigh Max 29.75 in [755.7 mm]
Width 12 in [304.8mm]
Depth 24 in [609.6 mm]
Weight, Total 47.48 lb [21.5 kg]
Material Type Hot dip galvanized steel
Additional sizes available 1012-0000-0135 (4-Run, 14” Cable Ladder)
Other Specifications For details please contact sales@emiproducts.com or call 800-453-0050.
