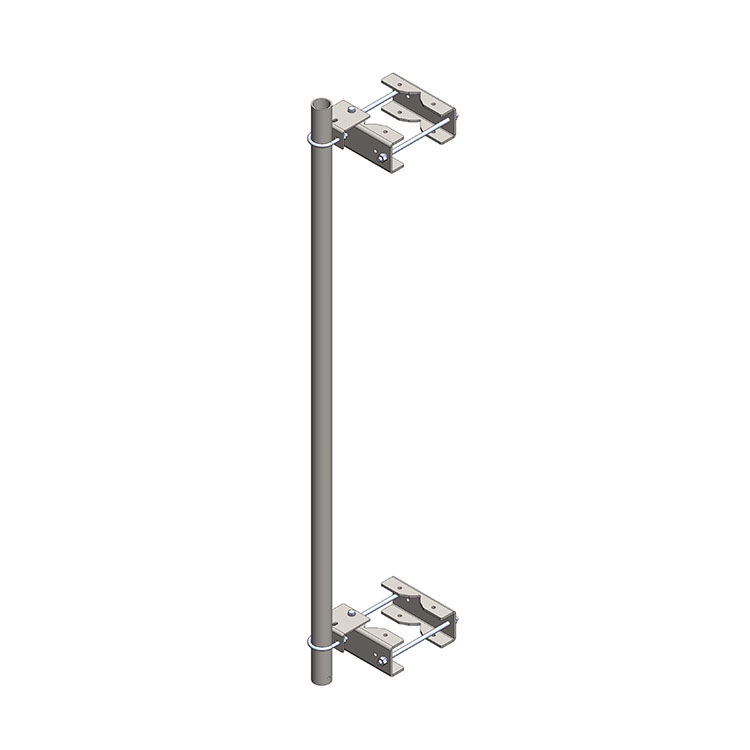

Single Antenna Mount Kit

Product Classification

Part Number 1000-0010-0378

Product Type Single Antenna Mount Kit

General Specifications

Application Antenna/Radio mount

Mounting 2.5 – 8 in [64 – 203 mm] OD

Pipe, Quantity 1

Tower Taper Non-tapered | Tapered


Height 96 in [2438 mm]

Vertical Pipe Diameter 2.9 in [73 mm]

Pipe Length 96 in [2438 mm]

Face Width 11.75 in [298.45 mm]

Mounting Diameter, maximum 8.63 in [219 mm]

Mounting Diameter, minimum 2.9 in [73 mm]

Stand-off Distance 6.125 in [155.58 mm]

Weight, Total 103.74 lb [47.06 kg]

 Material Specifications

Material Type Hot dip galvanized steel

 Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222


Print Spec Sheet
