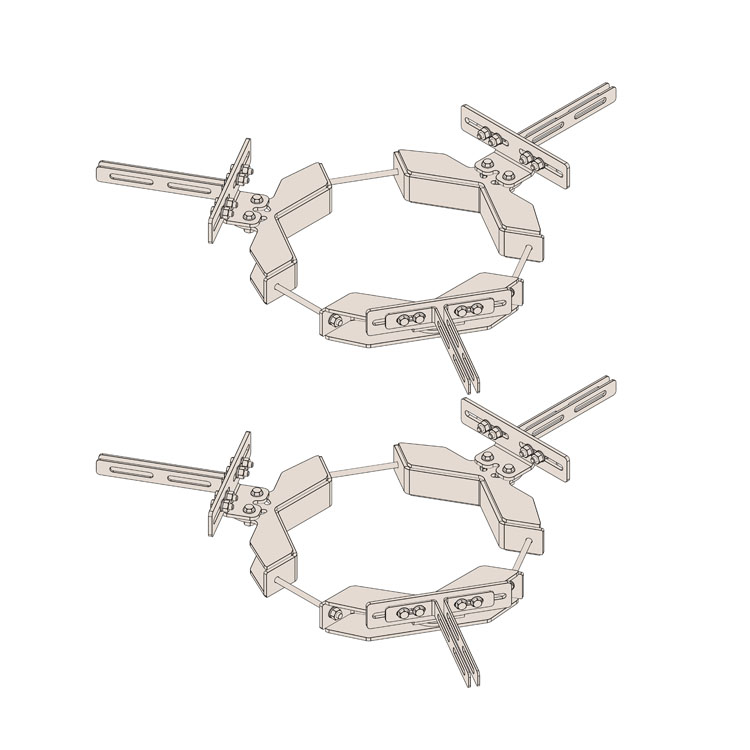

Trilateral™ Flush Mount 11” – 14” Dia. Pole with Extension Bracket

Product Classification

Part Number 1012-0000-0175

Product Type Trilateral™ Flush Mount 11” – 14” Dia. Pole with Extension Bracket

General Specifications

Application

This kit is for attaching a mountable platform for antennas to monopoles.

• Fits 11” to 14” pipe
• Can facilitate proximity close to monopole.
• For mount without extension bracket see 1012-000-0174
• Contact EMI for weight capacity and engineering criteria.

Dimensions

Height 4.93 in [125.2 mm] Height

Min Width 33.75 in [857.3 mm] (11” Pipe)

Max Width 36 in [914.4 mm] (14” Pipe)

Min Depth 29.19 in [741.4 mm] (11” Pipe)

Max Depth 31.13 in [790.6 mm] (14” Pipe)

Weight, Total 56.6 lb [25.7 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 6” – 11”, 11”-14”, 14”-24”

Other Specifications For details please contact sales@emiproducts.com or call 800-453-0050.
