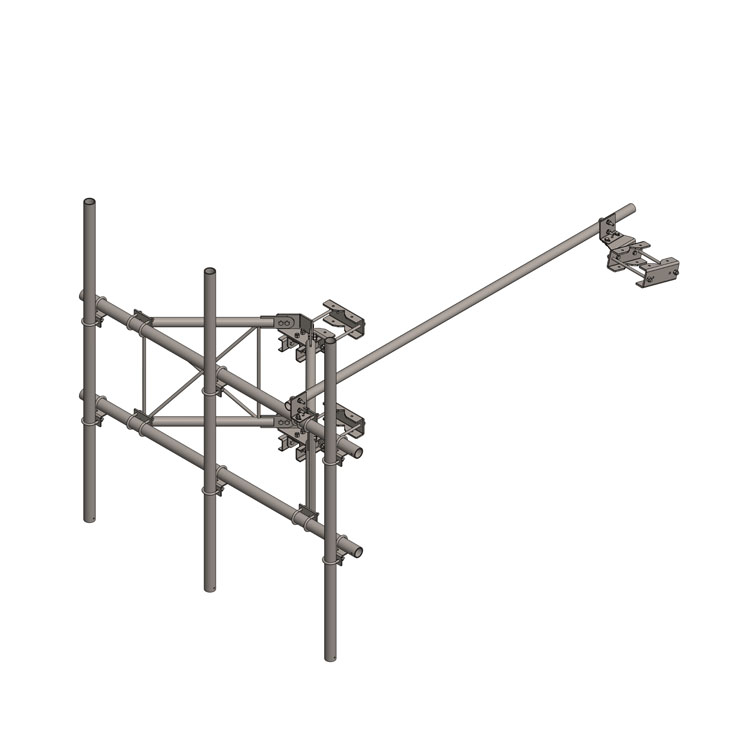

1 Sector, 3 Unit Tower Mount

Product Classification

Part Number1012-0010-5371

Product Type 1 Sector, 3 Unit Tower Mount

General Specifications

Application Antenna/Radio mount

Mounting 2.875 – 8.625 in [73- 219 mm] OD

Pipe, Quantity 3

Tower Taper Non-tapered | Tapered

Dimensions

Height 96 in [2438 mm]

Vertical Pipe Dia. 2.875 in [73 mm]

Pipe Length 96 in [2438 mm]

Face Width 96 in [2438 mm]

Horizontal Pipe Dia.. 2.375 in [60.325 mm]

Mounting Dia., Max. 8.625 in [219 mm]

Mounting Dia., Min. 2.875M in [73 mm]

Stand-off Distance 35 in [889 mm]

Weight, Total 532.33 lb [241.3111 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
