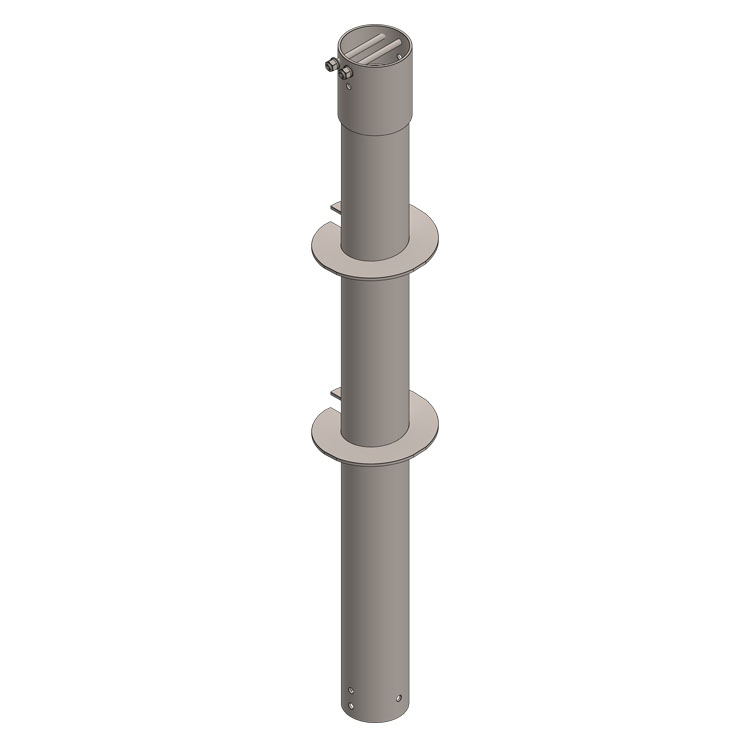

10” X 10 ft Double Flight Extension for Double or Triple Flight Helical

Product Classification

Part Number 1007-0010-0019

Product Type10” X 10 ft Double Flight Extension for Double or Triple Flight Helical

General Specifications

Application This extension is designed for use with the 10” x 10 ft Helical Pier Foundation with Double 19 7/8” Flights, providing additional length to reach deeper, more stable soil layers.

Dimensions

Height 127.31 in [3233.74 mm]

Width 10.75 in [273.05mm]

Weight, Total 423 lb [191.87kg]

Material Specifications

Material Type / Grade Stainless Steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050
