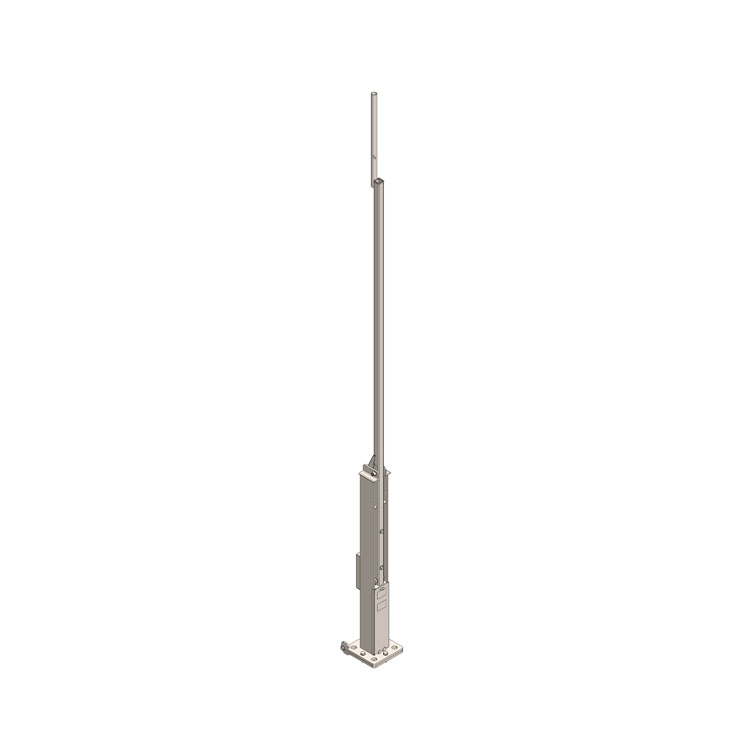

20′ Antenna Tilt-Up Tower (120 MPH EIA/TIA REV G)

Product Classification

Part Number 400-004-1002

Product Type 20′ Antenna Tilt-Up Tower (120 MPH EIA/TIA REV G)

General Specifications

Application Tower features a 20′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted up from the ground.

Dimensions

Height 277 in [7,035.8 mm]

Width 17 in [431.8 mm]

Length 17 in [431.8 mm]

Weight, Total 620.3 lb [281.4 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 120 MPH

Mounting Helical foundation
