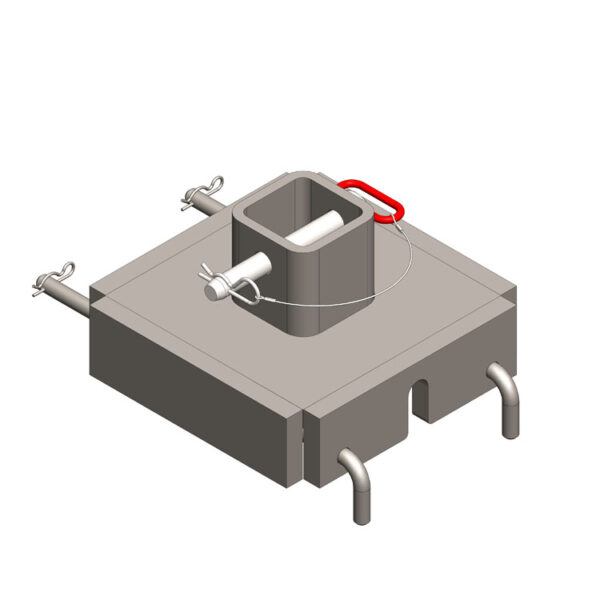

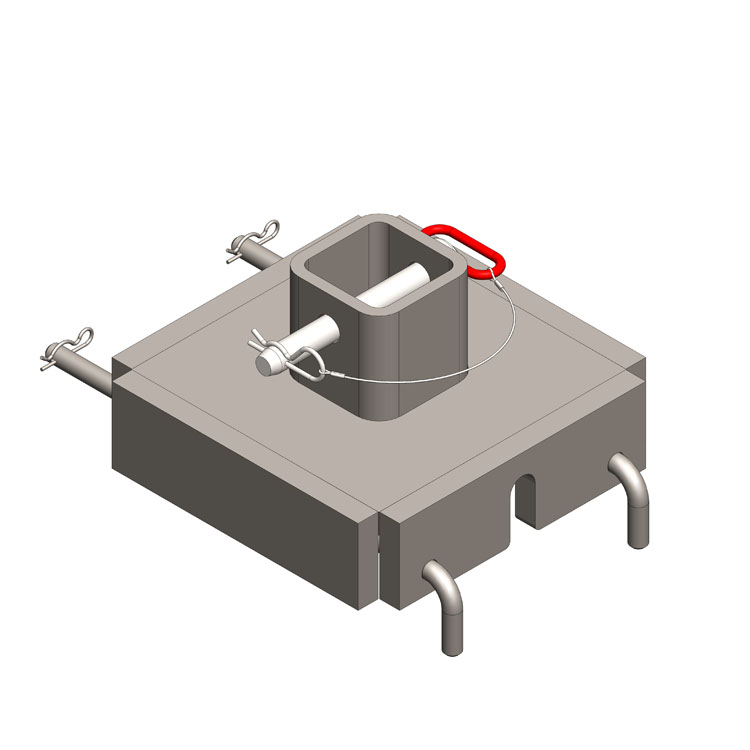

EMI DRIVE TOOL – 100 mm Drive Tool Assembly for 6” and 8” Helical

Product Classification

Part Number 1000-0020-0015

Product Type 100mm Drive Tool Assembly for 6” and 8” Helical

General Specifications

Application Provides interface for installation of helicals.

Dimensions

Width 20.375 in [517.5 mm]

Height 8.25 in [205.6 mm]

Depth 14.56 in [369.8 mm]

Weight, Total 106.4 lb [48.26 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Hex Size 100mm

Top Plate Length 12.313in [312.75 mm]

Top Plate Width 12.313in [312.75 mm]

Top Plate Height 1in [25.4mm]

Download Drawing
