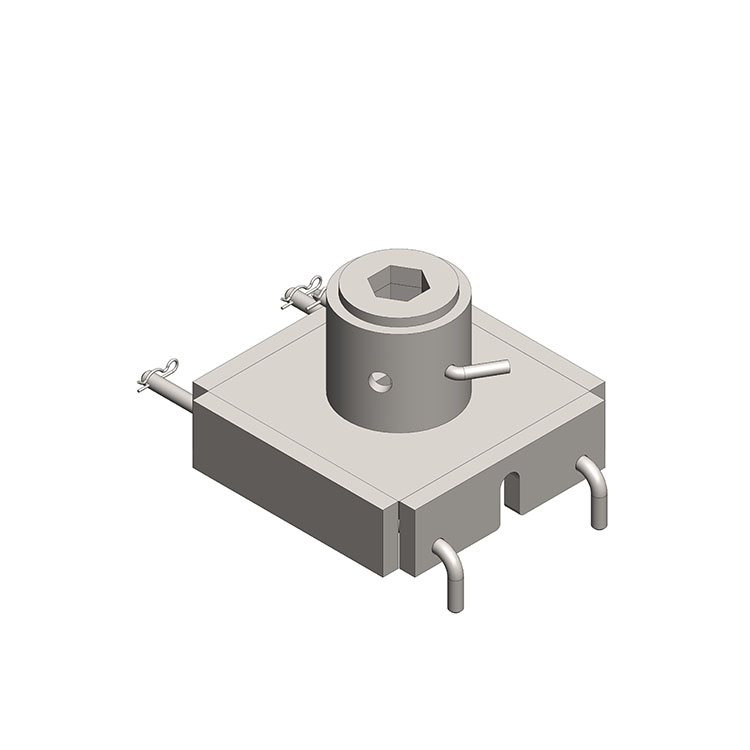

EMI Drive Tool – 2.5” Hex Drive for 6” & 8” Helical

Product Classification

Part Number 1000-0020-0040

Product Type 2 1/2” Hex Drive Tool for 6” Helical

General Specifications

Application Provides interface for installation of helicals


Width 14.3725 in [365.06 mm]

Height 9.75 in [247.65 mm]

Depth 14.3725 in [365.06 mm]

Weight 81.9 lb [37.15 kg]

Material Specifications

Material Type                                       Carbon steel

Mechanical Specifications

Hex Size                                                2 1/2 in

Top Plate Length                                   12.3125 in [312.74 mm]

Top Plate Width                                    12.3125 in [312.74 mm]

Top Plate Height                                    1 in [25.4 mm]
