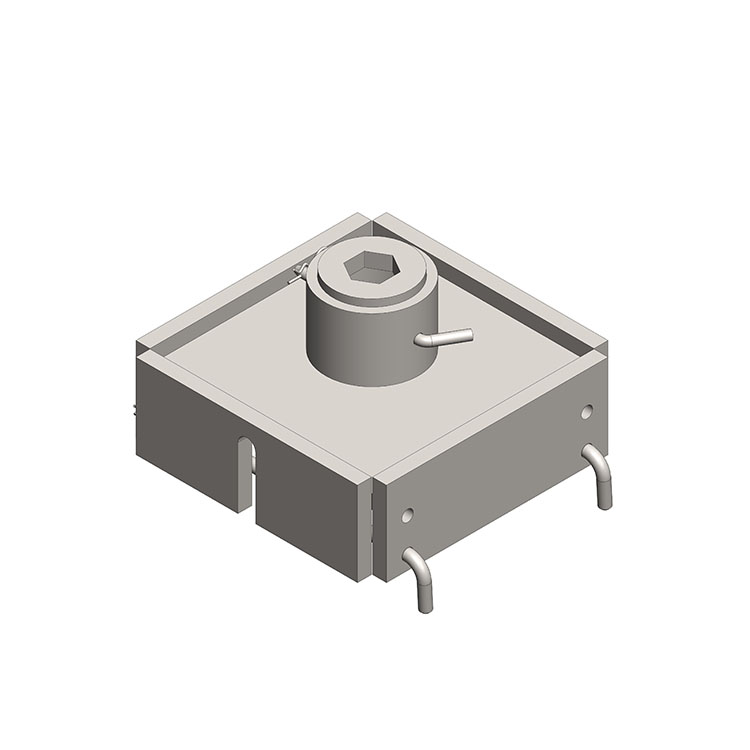

EMI Drive Tool – 2 1/2” Hex Drive Tool for 10” Helical

Product Classification

Part Number 1000-0020-0086

Product Type 2 1/2” Hex Drive Tool for 10” Helical

General Specifications

Application Provides interface for installation of helicals

Dimensions

Width 17.813 in [452.45 mm]

Height 11 in [279.4 mm]

Depth 17.813 in [452.45 mm]

Weight 196.3 lb [89.04 kg]

Material Specifications

Material Type Carbon steel

Mechanical Specifications

Hex Size 2 1/2 in

Top Plate Length 12.3125 in [312.74 mm]

Top Plate Width 12.3125 in [312.
