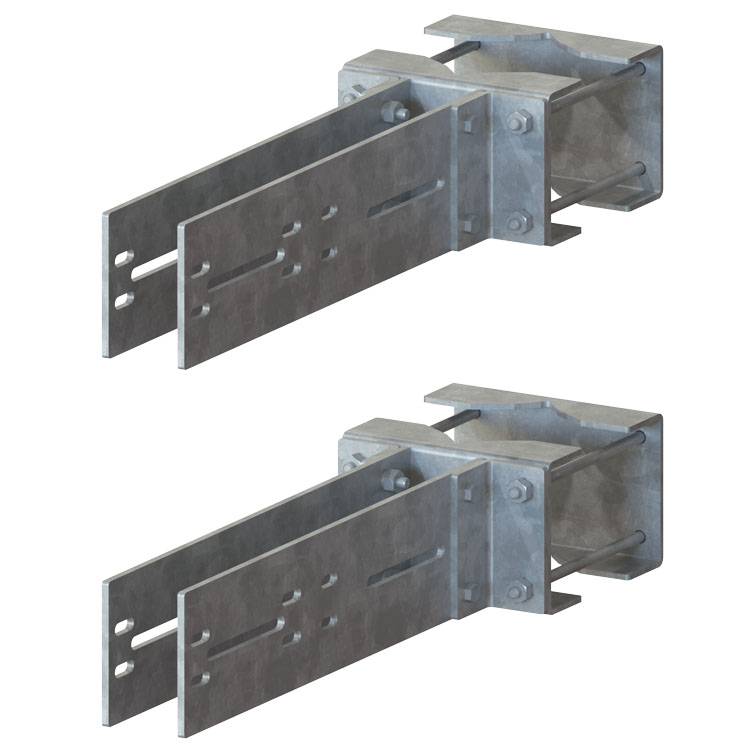

Remote Radio Head Unit (RRU) Mount

Product Classification

Part Number 1000-0010-0299

Product Type Remote Radio Head Unit Mount

General Specifications

Mounting Tapered, Non-tapered

QTY sets 2

 Dimensions

Height 16.75 in [425 mm]

Width 7.5 in [191 mm]

Length 19 in [483 mm]

Mounting Dia, max 2.4in [60 mm]

Mounting Dia, min 4.5in [114 mm]

Weight, Total 48 lb [22 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
