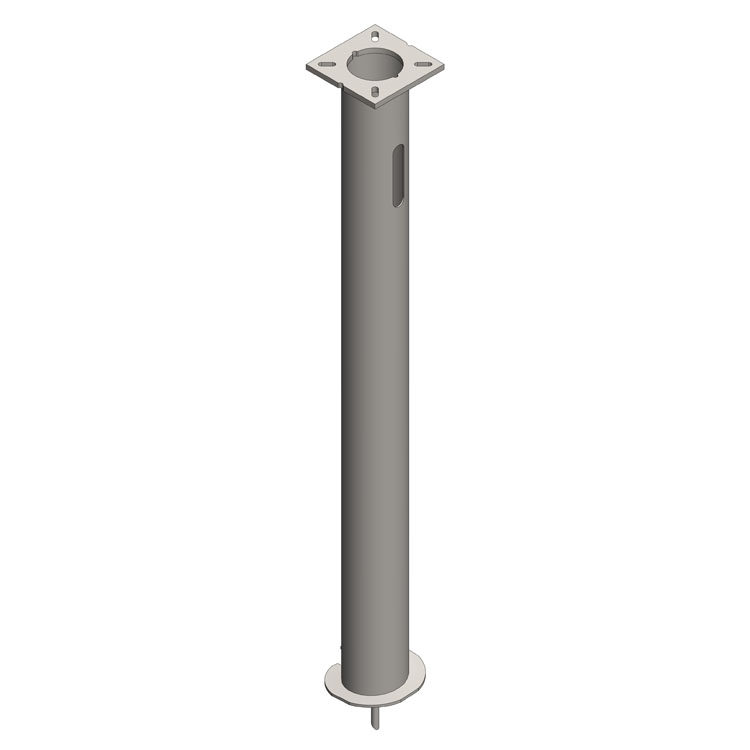

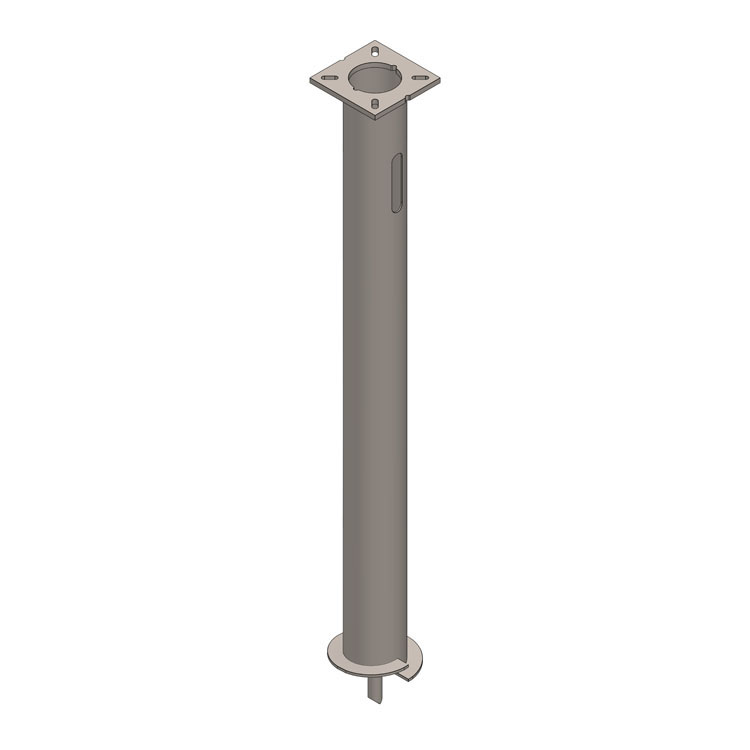

10” x 10 ft Helical Pier Foundation

Product Classification

Part Number 400-000-1001

Product Type 10” x 10 ft Helical Pier Foundation

General Specifications

Application Elevated Platforms, Landings, Towers


Width 15.5 in [393.7 mm]

Length 120 in [3,048 mm]

Diameter 10.75 in [273 mm]

Cableway 2.5 in [63.5 mm]

Weight, Total 368 lb [167 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222


Print Spec Sheet
