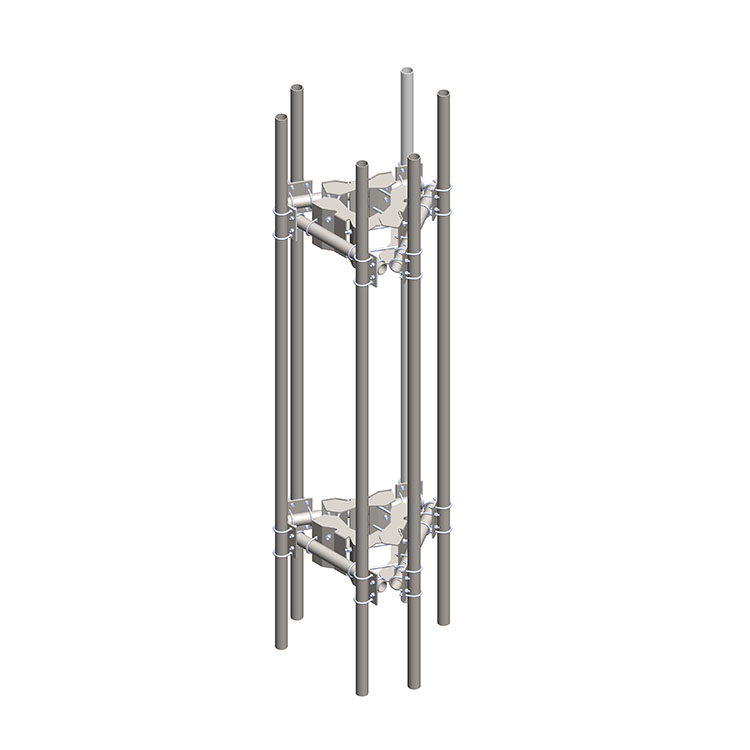

3 Sector, 2 Unit Mount

Product Classification

Part Number 1000-0010-0362

Product Type 3 Sector 2 Mount Frame

General Specifications

Application Antenna/Radio mount

Mounting 8.625 in [219.08 mm] OD

Pipe, Quantity 6

Tower Taper Non-tapered | Tapered


Height 120 in [3048 mm]

Vertical Pipe Diameter 2 in [50.8 mm]

Pipe Length 120 in [3048 mm]

Face Width 26 in [660.4 mm]

Stand-off Distance 7.375 in [187.33 mm]

Weight, Total 428.68 lb [194.45 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
