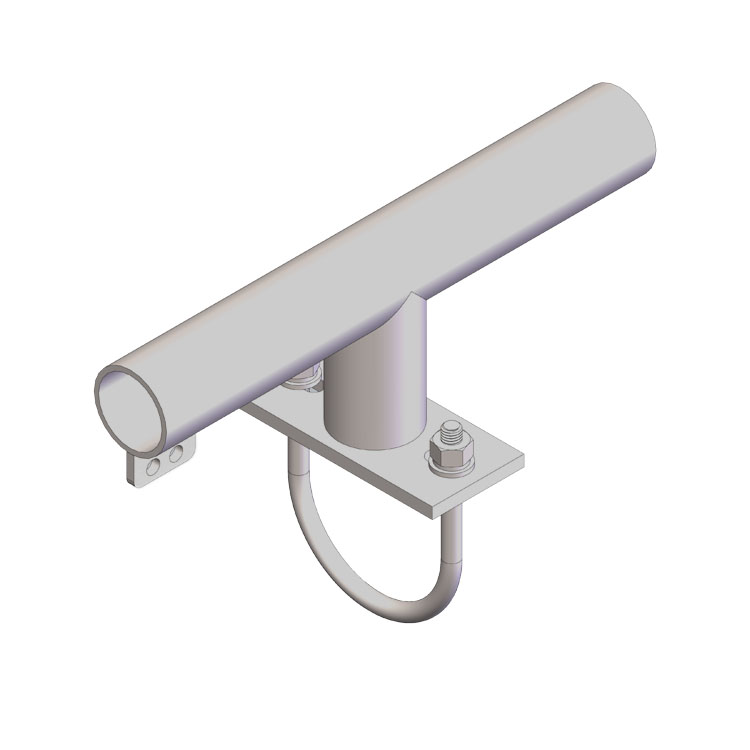

Mid-Mast Antenna Mount, P4”

Product Classification

Part Number 1015-0000-0055

Product Type Mid-Mast Antenna Mount, P4”

General Specifications

Application Antenna mount

Mounting 4.25 in [107.95 mm] OD

Pipe, Quantity 1

Tower Taper Non-tapered | Tapered

Dimensions

Height 16 in [406.4 mm]

Vertical Pipe Diameter 2 in [50.8 mm]

Pipe Length 16 in [406.4 mm]

Face Width 6.75 in [171.45 mm]

Stand-off Distance 3.5 in [88.9 mm]

Weight, Total 9.84 lb [4.46 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Download Drawing
