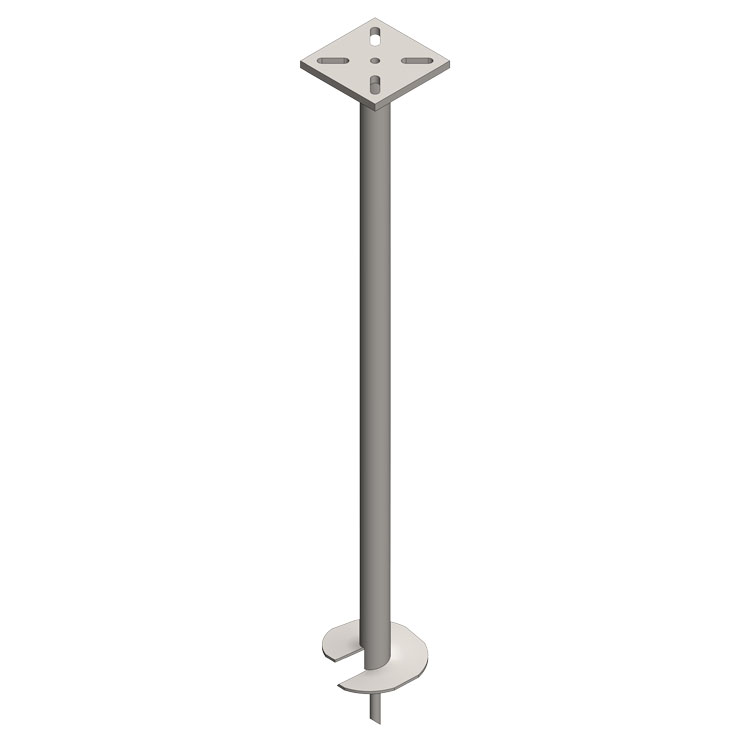

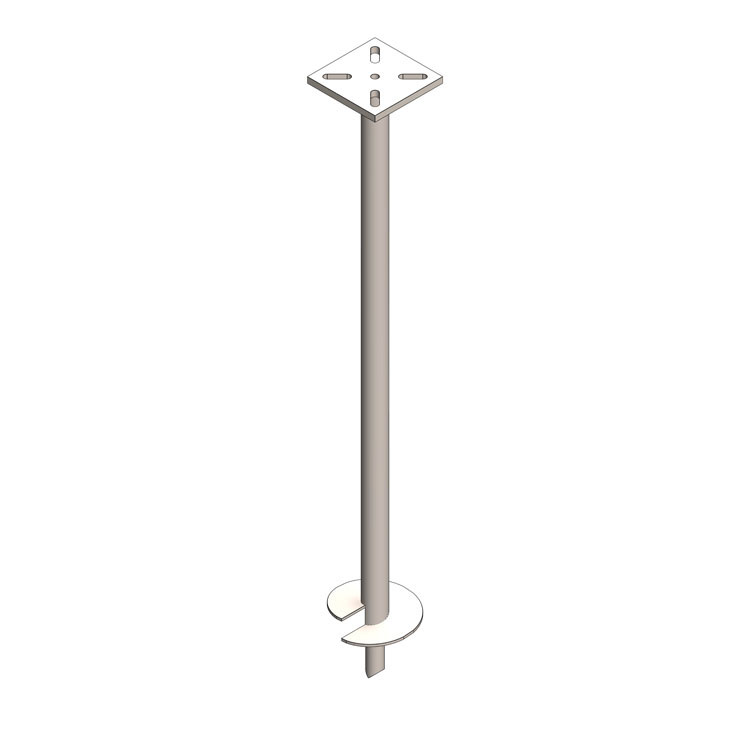

3” x 7 ft Helical Pier Foundation

Product Classification

Part Number 1008-0050-0051

Product Type 3” x 7 ft Helical Pier Foundation

General Specifications

Application Elevated Platforms, Landings, Towers

Dimensions

Width 12 in [304.8 mm]

Length 92.0625 in [2338.39 mm]

Diameter 3.5 in [88.9 mm]

Cableway none

Weight, Total 102.5 lb [46.49 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
