1 Sector, 5 Unit High-Capacity Tower Mount

Product Classification

Part Number 1000-0010-0358

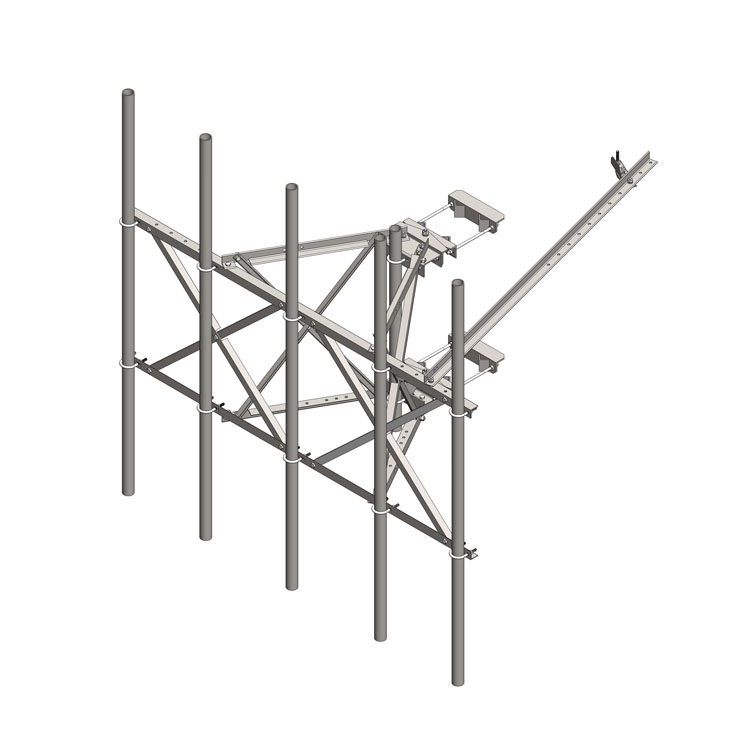

Product Type 5 Unit High-Capacity Tower Sector Frame

General Specifications

Application Antenna/Radio mount

Mounting 10.25 – 5.125 in [260.35 – 130.18 mm] OD

Pipe, Quantity 5

Tower Taper Non-tapered | Tapered

Dimensions

Height 94.5 in [2400.3 mm]

Vertical Pipe Dia. 2 in [50.8 mm]

Pipe Length 94.5 in [2400.3 mm]

Face Width 94.5 in [2400.3 mm]

Mounting Dia., max. 10.25 in [260.35 mm]

Mounting Dia., min. 5.125 in [130.18 mm]

Stand-off Distance 38.3 in [972.82 mm]

Weight, Total 386.52 lb [175.32 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
