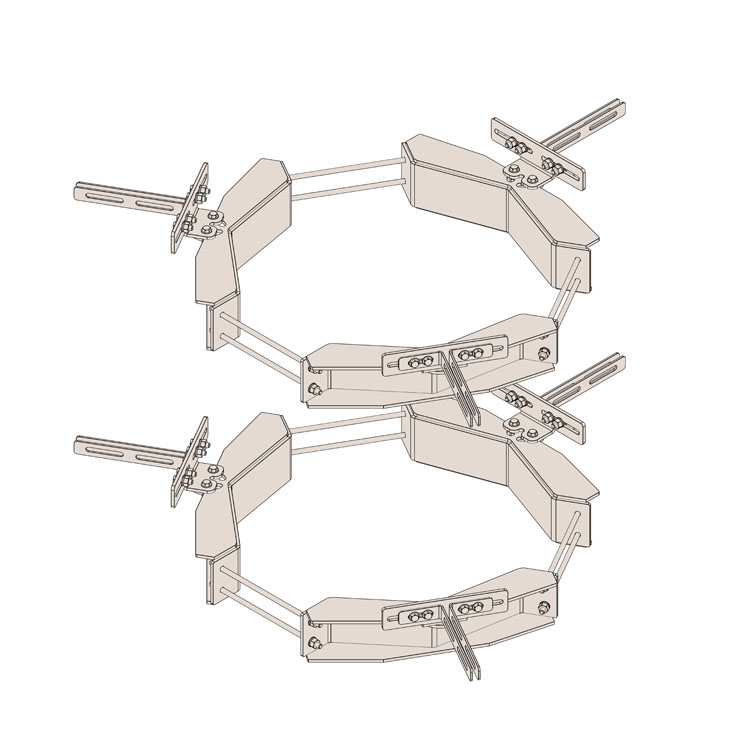

Trilateral™ Flush Mount 14” – 24” Dia. Pole with Extension Bracket

Product Classification

Part Number 1012-0000-0177

Product Type Trilateral™ Flush Mount 14” – 24” Dia. Pole with Extension Bracket

General Specifications

Application This kit is for attaching a mountable platform for antennas to monopoles.

• Fits 14” to 24” pipe
• Can facilitate proximity close to monopole.
• For mount without extension bracket 1012-000-0176
• Contact EMI for weight capacity and engineering criteria.

Dimensions

Height 6.94 in [176.3mm] Height

Min Width 34.8 in [884.2 mm] (14” Pipe )

Max Width 44.1 in [1119.2 mm] (24” Pipe)

Min Depth 32.1875 in [817.6 mm] (14” Pipe)

Max Depth 40.1875 in [ 1020.8 mm] (24” Pipe)

Weight, Total 100.7 lb [ 45.7 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 6” – 11”, 11”-14”, 14”-24”

Other Specifications For details please contact sales@emiproducts.com or call 800-453-0050.
