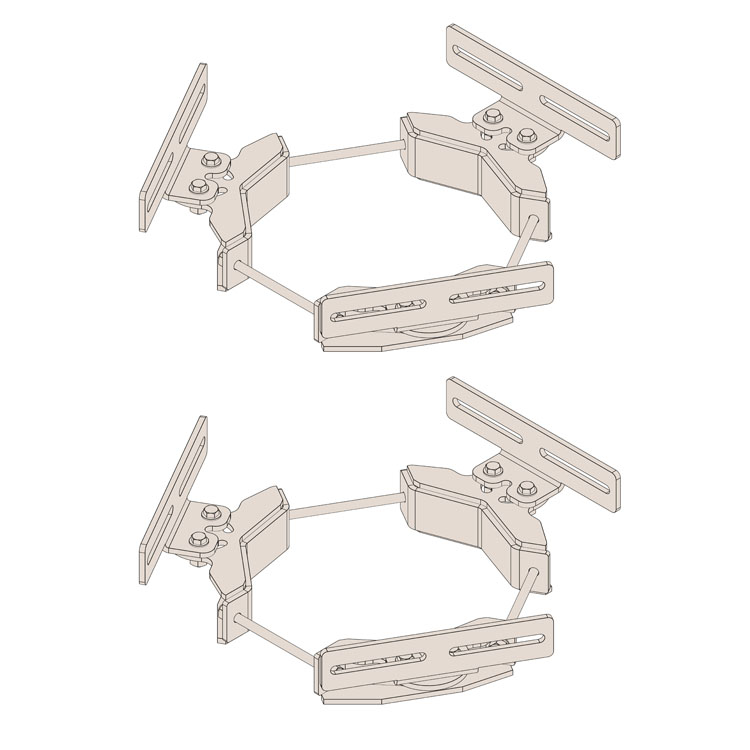

Trilateral™ Flush Mount 3” – 6” Dia. Pole

Product Classification

Part Number 1012-0000-0170

Product Type Trilateral™ Flush Mount 3” – 6” Dia. Pole

General Specifications

Application

This kit is for attaching a mountable platform for antennas to monopoles.

• Fits 3” to 6” pipe
• Can facilitate proximity close to monopole.
• For extension bracket see 1012-000-0171
• Contact EMI for weight capacity and engineering criteria.

Dimensions

Min Height 17.75 in [450.9 mm]

Max Height 29.75 in [755.7 mm]

Min Width 13.38 in [339.7mm] ( 3” Pipe )

Max Width 16.13 in [409.6 mm] (6” Pipe)

Min Depth 11.56 in [293.7mm] ( 3” Pipe )

Max Depth 13.94 in [354 mm] (6” Pipe)

Weight, Total 22.1 lb [10 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 6” – 11”, 11”-14”, 14”-24”

Other Specifications For details please contact sales@emiproducts.com or call 800-453-0050.
