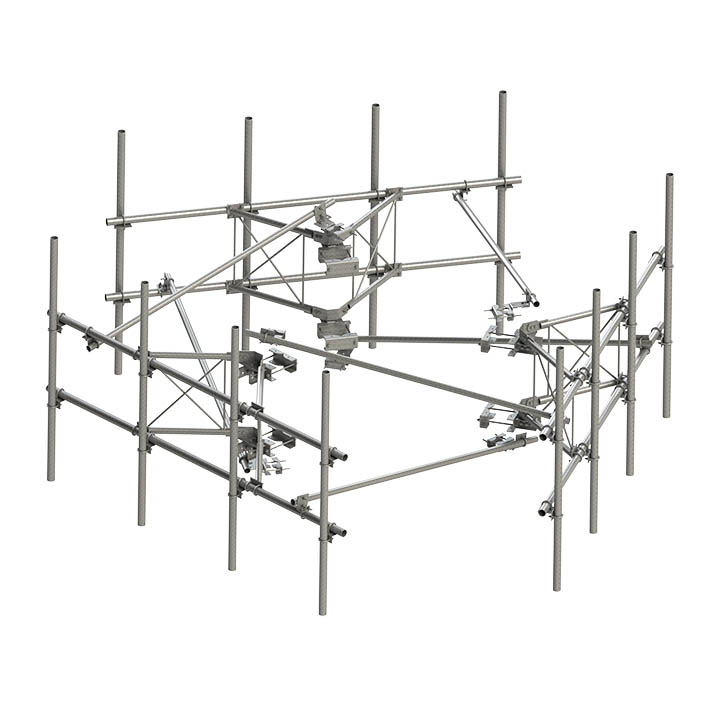

3 Sector, 4 Unit High-Capacity Tower Mount

Product Classification

Part Number 1000-0010-0343

Product Type High-Capacity Tower

3 Sector/4 Mount Frame

General Specifications

Application Antenna/Radio mount

Mounting 2.5 – 8 in [64 – 203 mm] OD

Pipe, Quantity 12

Tower Taper Non-tapered | Tapered

Dimensions

Height 96 in [2438 mm]

Vertical Pipe Dia. 2.9 in [73 mm]

Pipe Length 96 in [2438 mm]

Face Width 150 in [3810 mm]

Horizontal Pipe Dia. 2.9 in [73 mm]

Mounting Dia. (max) 8.63 in [219 mm]

Mounting Dia. (max) 2.9 in [73 mm]

Stand-off Distance 35 in [889 mm]

Weight, Total 2014 lb [914 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

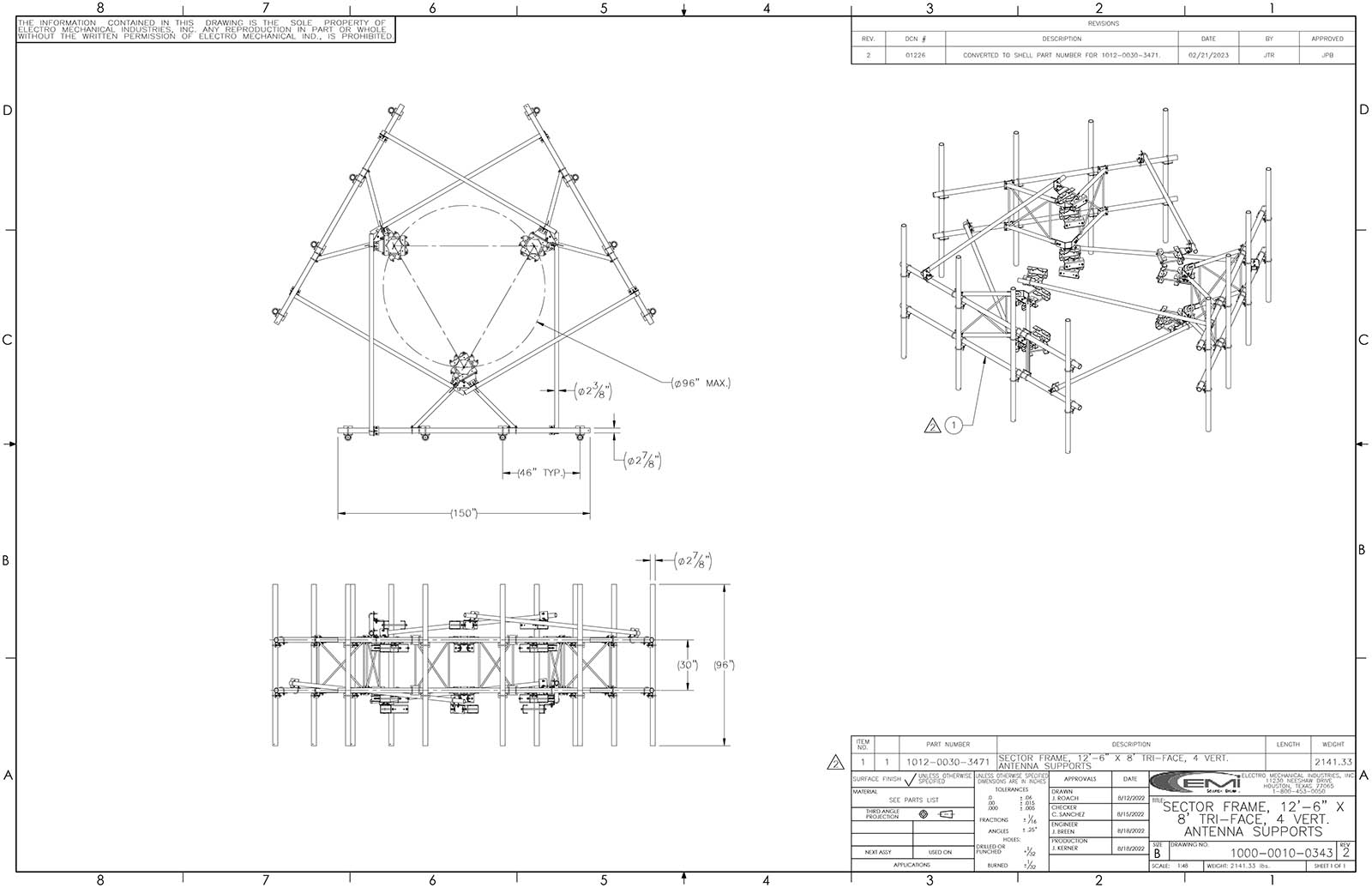

Download Drawing
