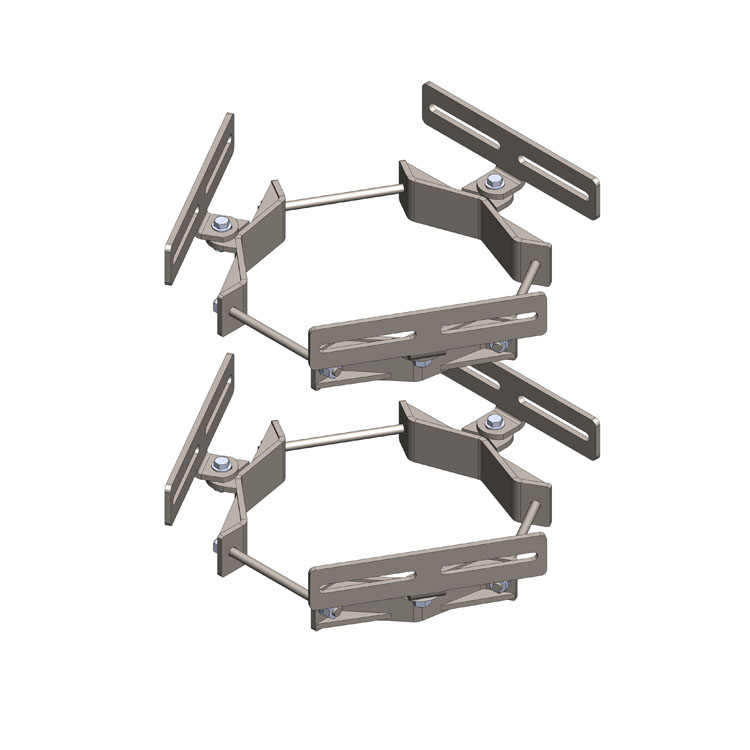

Triad Flush Mount 6” to 11” Dia. Pole

Product Classification

Part Number 1012-0000-0130

Product Type Triad Flush Mount

General Specifications

Application Antenna/Radio mount

Tower Taper Non-tapered


Height 16.5625 in [421 mm]

Face Width 10 in [254 mm]

Mounting Dia., max. 11 in [279 mm]

Mounting Dia., min. 6 in [152 mm]

Stand-off Distance 2 in [51 mm]

Weight, Total 21 lb [9.5 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
