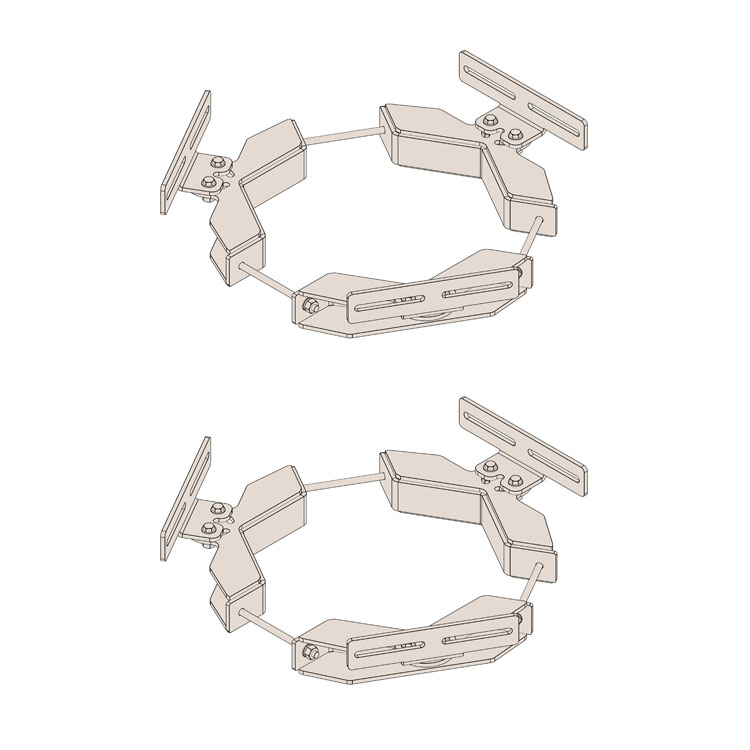

Trilateral™ Flush Mount, 11” – 14” Dia. Pole

Product Classification

Part Number 1012-0000-0174

Product Type Trilateral™ Flush Mount, 11” – 14” Dia. Pole

General Specifications

Application

This kit is for attaching a mountable platform for antennas to monopoles.

• Fits 11” to 14” pipe
• Can facilitate proximity close to monopole.
• For extension bracket see 1012-000-0175
• Contact EMI for weight capacity and engineering criteria.

Dimensions

Height 4.93 in [125.2 mm] Height

Min Width 21 in [533.4 mm] (11” Pipe)

Max Width 25 in [ 635 mm] (14” Pipe)

Min Depth 18.2 in [462 mm] (11” Pipe)

Max Depth 21.6 in [549.3 mm] (14” Pipe)

Weight, Total 48.87 lb [22.1 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 6” – 11”, 11”-14”, 14”-24”

Other Specifications For details please contact sales@emiproducts.com or call 800-453-0050.
