Trilateral™ Flush Mount 14” – 24” Dia. Pole

Product Classification

Part Number 1012-0000-0176

Product Type Trilateral™ Flush Mount 14” – 24” Dia. Pole

General Specifications

Application

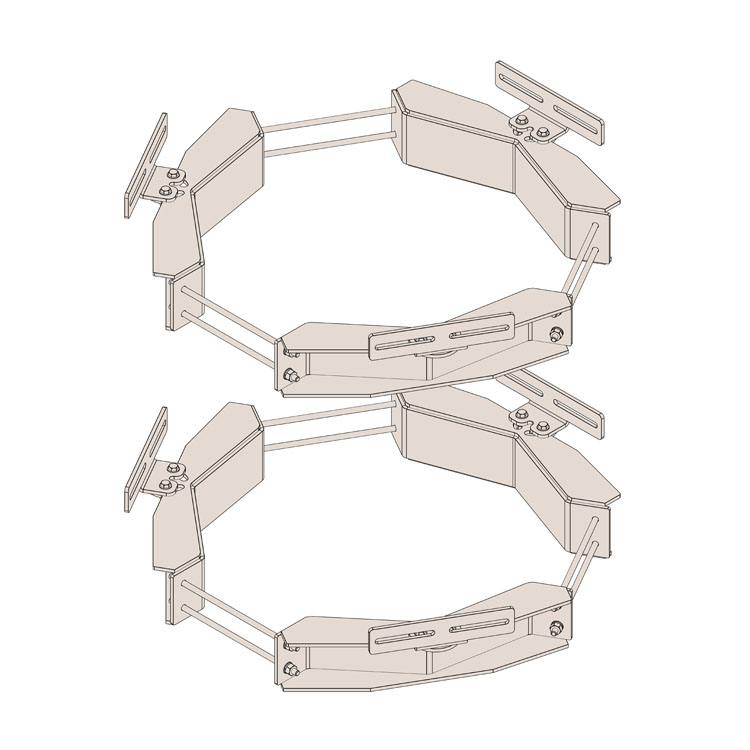

This kit is for attaching a mountable platform for antennas to monopoles.

• Fits 14” to 24” pipe
• Can facilitate proximity close to monopole.
• For extension bracket see 1012-000-0177
• Contact EMI for weight capacity and engineering criteria.

Dimensions

Height 6.88 in [174.7mm] Height

Min Width 22.06 in [554 mm] (14” Pipe)

Max Width 30.75 in [781.1 mm] (24” Pipe)

Min Depth 21.44 in [544.5 mm] (14” Pipe)

Max Depth 29.38 in [746.1 mm] (24” Pipe)

Weight, Total 77.5 lb [35.2 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 6” – 11”, 11”-14”, 14”-24”

Other Specifications For details please contact sales@emiproducts.com or call 800-453-0050.

Download Drawing
